TITAN Wind Turbine Blade Trailer for Windmill Turbine Blade
Transport
Your road to success
TITAN is a specialized heavy haul trailer manufacturer in China,
with more than 15 years production experience and strong technical
strength, TITAN semi trailers has successfully entered into over 50
countries and areas around the world, such as Ethiopia, Malawi,
Uganda, Mali,Zimbabwe, Zambia, Nigeria, Algeria, Sudan, Kenya,
Djibouti, India, Pakistan, Argentina, Chile, Mexico, and so on.
For transporting extremly heavy and long windmill turbine blade - Wind Turbine Blade Trailer from TITAN is the ideal solution, with single to triple extendable
decks and a loading length of up to 56 meters, a TITAN Wind Turbine Blade Trailer adapts perfectly to haul 45 meters to 80 meters long windmill
turbine blade transportation and long bulky goods.TITAN Wind Turbine Blade Trailer are noted for their highly robust frames and outstanding stability
of the extension beam. the high standard of the workmanship and
welding process ensures easy adjustment of the extension beams TITAN Wind Turbine Blade Trailer can be adjusted to fit any size or band of Turbine Blade, TITAN
can provide you the customize wind blade trailer to meet your
transport requirements.
Features - TITAN Wind Blade Trailer
Trailer's length from 21. meters extend to 56 meters
Transport the 45 meters to 80 meters Windmill Turbine Blade.
Loading capacity is up to 60 ton
Steerable axles, all wheels steering.
Highly robust frames and outstanding stability of extension beam.
Mechanical spring suspension, air suspension or hydraulic
suspension is an option
Manual valve operation and wireless remote control.
Main Specification - TITAN Wind Blade Trailer
| Brand | TITAN Wind Turbine Blade Trailer |
| Dimension | 21,500mmX3000mmX1350mm |
| Total length | 56,000mm after extension |
| Loading capacity | 60 Ton |
| Platform thickness | 3 mm |
| Hydraulic power station | Diesel engine |
| Axle | 4 units steering axle |
| Suspension | Mechanical spring suspension. |
| Tyre | 16 units, Triangle brand |
| Braking system | WABCO emergency valve |
| King pin | 3.5 inch high tensile steel bolted type |
| Landing gear | JOST C200 |

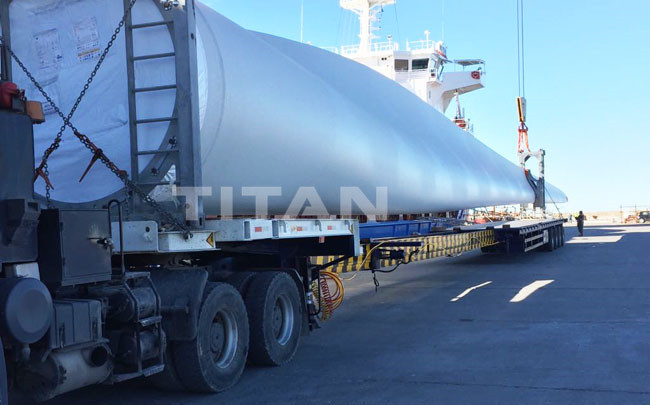

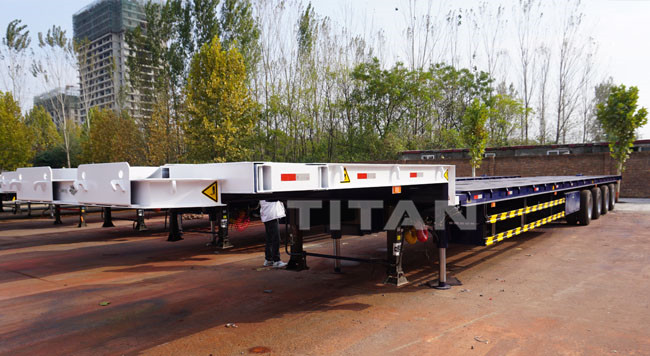

TITAN Wind Blade Trailer
TITAN 56 meters Wind Turbine Blade Trailer - www.titanvehicle.com
TITAN 56 meters Wind Turbine Blade Trailer - www.titanvehicle.com
TITAN 56 meters Wind Turbine Blade Trailer - www.titanvehicle.com
TITAN professinoal engineering team will be ready to provide you
with a set of well-integrated solutions that meets your
transportation needs and also your local regulartions. TITAN
engineering team can communicate with you online to fully
understand your needs, the solutions include the product design,
product material, product drawings, product videos.
All customers and friends are warmly welcomed to our company for
visit and business negotiations, TITAN will as always to our best
effort to provide you the most durable TITAN Wind Turbine Blade Trailer to support you forever.
If you are interested, welcome to the inquire or online message!
Please fill in your contact information and suggestions! Thank you!
We will meet the acme of perfection to serve and provide more
details , price ,catalog,drawing ,video for you !
Orders for ready-made or custom-made trailers are welcome!
